PCMCIA CONTROLLER
FEATURES
- PCMCIA to ATA/IDE translation
- Supports Contiguous addressing
- Supports Primary and Secondary addresses
- Supports Memory and I/O modes
- 256 bytes local SRAM of CIS Memory
- 8-bit and 16-bit host access support at all addresses
- Registers accessible from host during low-power state
- 68-Pin ATA pass through mode
- Auto-detection of pass-through mode
- Supports up to 20 MB/s data transfer rate in Memory Mode
- Supports up to 17 MB/s data transfer rate in I/O mode
- Conforms to PCMCIA 2.1 Standard

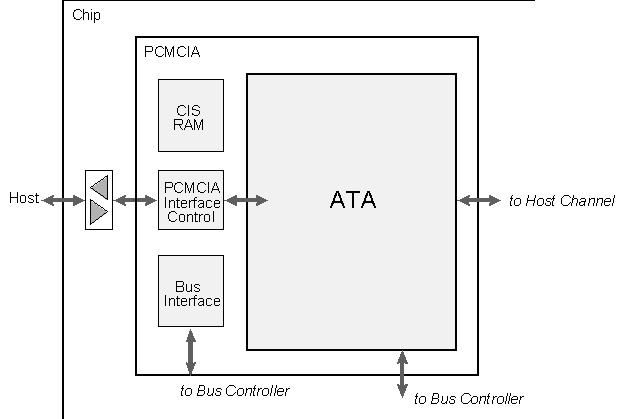

SYSTEM OVERVIEW
