1MHz 10 bit pipeline ADC, dual input

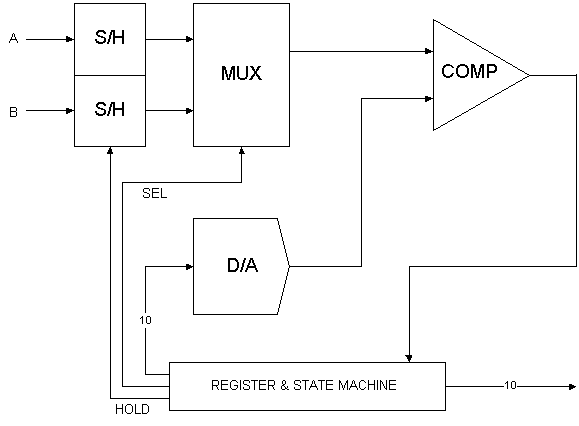

The ADC is able to convert the analog input signal into an unsigned 10 bit digital word for further processing. It has pipeline architecture and it features two inputs sampled simultaneously.
Features:
- Resolution: 10 bit
- Maximum conversion rate: 1Ms/s
- Analog input voltage range: 0 - 1023mV
- Integral linearity error: 10 LSB
- Differential linearity error: 0.5LSB
- Output data format: unsigned 10 bit
- Supply voltage: 3 - 5.5V
- Dynamic supply current: 2mA, typical
- Power down consumption: 1mA, max.
- Operating temperature: 0 - 100oC
- 0.8mm CMOS Process
