540 Ms/s signed 6-bit flash ADC (Cell Specification)

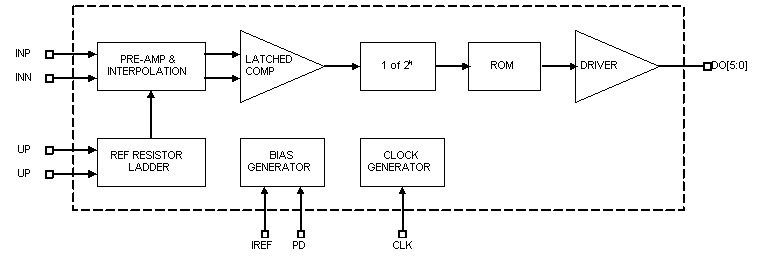

The ADC is able to convert the analog input signal into a signed 2's complement 6 bit digital word for further processing. It uses a flash architecture and interpolating comparator preamplifiers, and is destined mainly for disk drive read or communications channels.
Features:
- Resolution: 6 bit
- Maximum conversion rate: 540Ms/s
- Differential analog input voltage range: 1.28Vp-p (centered on 1.1Vdc)
- Integral linearity error: 0.5LSB
- Differential linearity error: 0.5LSB
- Equivalent Bit Number: 5.3 bits
- Output data format: 2's complement
- Pipelined delay (ADC latency): 1 clock cycle
- External reference input voltages: 1.46V and 0.74V (1.1V +/- 0.36V)
- Supply voltage: 1.8V, +/-10%
- Dynamic supply current: 60mA, typ.
- Total power dissipation:120mW
- Power down consumption: 1mA, max.
- Operating temperature: 0 - 70oC
- 0.18mm Digital CMOS Process
- 0.35 mm CMOS technology
