80 to 270MHz FREQUENCY SYNTHESIZER
FEATURES
VCO Frequency (
w
o
) : 110
¸
480 MHz
VCO Control Gain (Kvco) : 0.28
w
o
, typ.
VCO Dynamic Range : +/-0.2
w
o
, typ.
VCO Center Frequency : 7-bit, programmable
Input and Loop Dividers : 8-bit, programmable
Input Reference : 10
¸
60 MHz
Technology : 0.29
m
m BiCMOS

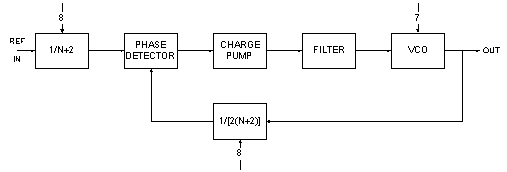

SYSTEM OVERVIEW
