TIMER

TIMER BLOCK FEATURES

• Independent clock pre-scale for each timer
• Independent interrupt for each timer
• Two General-purpose timers
  • Periodic mode
  • Free-running mode
  • Time-out mode
• Second timer may be used as watchdog timer
• Watchdog timer resets system on time-out

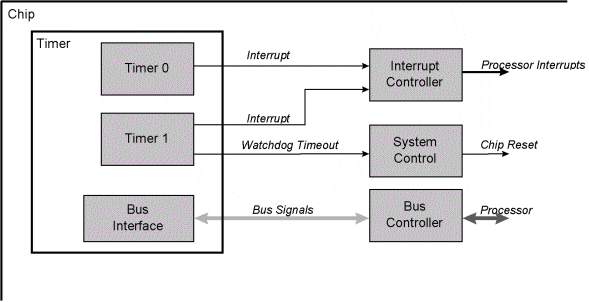

SYSTEM OVERVIEW

The Timer consists of two general-purpose timers. The second timer can be configured as a watchdog timer. The primary use of timers is to time long periods of time accurately, off-loading the processor of the task. This function is most useful for timeout periods, when the processor is busy performing essential tasks, or for internal performance monitoring. Two timers provide greatest flexibility, allowing small delay times to be programmed in one timer while the second is used for timeout functions, or to allow multiple concurrent tasks access to independent timers.
