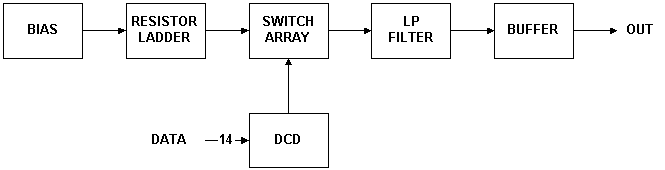

14 bit voltage monotonic DAC

Features:

• DAC full-scale range: +/- 512 mV
• Resolution: 14 bits
• Differential non-linearity: 1 LSB (max)
• Integral non-linearity: 10 bits (typical)
• Zero mid-scale error: +/- 5mv
• Full scale error: 4% (max)
• Conversion time: 2us (typical) / 5ms (max)
• Power supply: 3.3V/5V +/- 10%
• Temperature range: 0 to 70 ^oC
• 0.8 mm CMOS technology
