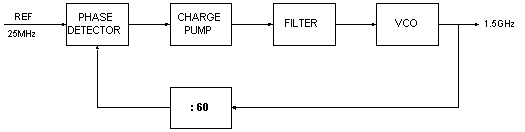

1.5GHz PLL
FEATURES
VCO Frequency (
w
o
) : 1500 MHz
VCO Control Gain (Kvco) : 0.2
w
o
, typ.
VCO Dynamic Range : +/-0.1
w
o
, typ.
Loop Divider :
¸
60
Input Reference : 25 MHz
Technology : 0.18
m
m CMOS
BACK
LD-PLL-0020-050
