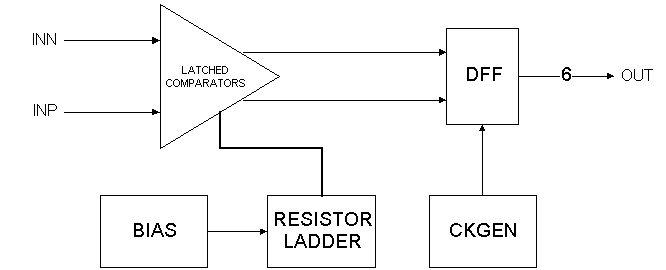

The ADC is able to convert the analog input signal into a 6 bit digital word for further processing.

Features:

• Full flash architecture
• Automatic offset correction
• Resolution: 6 bits
• Total harmonic distortion (THD): 1%(typ) / 2% (max)
• Effective number of bits: 5.5 bits (min)
• Differential non-linearity: 0.5 bits (max)
• Integral non-linearity: 1 bit (max)
• DC input voltage: 1.5 V (typ)
• Input bandwidth: 50 MHz (min)
• Delay clock to output: 1.5 ns (typ)
• Power supply: 3.3 V (typ)
• Temperature range: 0 to 70 degrees C
• 0.35 mm CMOS technology
